TC358JU240T24
 |
|
Click to enlarge image(s)
|

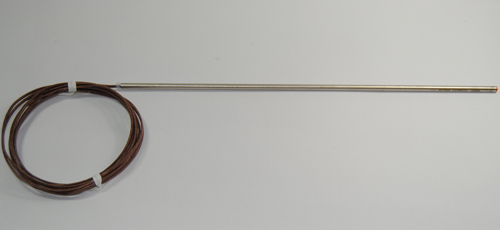

Minco straight thermocouple probes feature a sensing tip constructed of copper alloy. The copper alloy tip is twenty times more conductive than stainless steel, providing increased sensitivity and rapid response to changes in temperature. The tip sensitive design also focuses the temperature sensitive portion of the sensor near the tip of the probe, providing improved accuracy in thermowells, bearings and other installations.
For applications requiring:
- High sensitivity and accuracy
- Rapid response
- Temperature range of -184 to 260°C (-300 to 500°F)
| Element Type |
Single Junction |
| Case Diameter (in) |
0.250 |
| Length (in) |
24.000 |
| Lead Length (in) |
240 |
| Lead Wire |
PTFE insulated leads |
| Junction Ground |
Ungrounded |
| Base Model |
TC358 |
| Element Code |
J |
| Temperature Range |
-184 to 260°C (-300 to 500°F) |
| Pressure Rating |
100 psi (6.9 bar) |
| Vibration |
Withstands 10 to 2000 Hz at 20 G's min. per MIL-STD-202, Method 204, Test Condition D |
| Shock |
Withstands 100G's min. sine wave shock of 8 milliseconds duration |
| Probe Type |
Straight |
